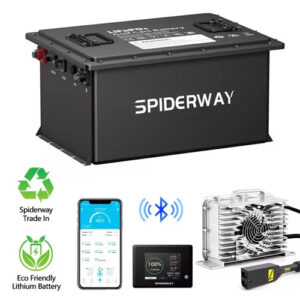

At Prime Cart Parts, our online store for golf cart parts and accessories, along with batteries and chargers, we also have a variety of lithium batteries available for sale. Our newest is the 48V 105AH Spiderway golf cart lithium battery, one of our most affordable models available, with a driving range of up to 50 miles on a single charge. Besides longer driving time, more benefits of upgrading a lead-acid battery system to a lithium one is less weight on the golf cart, which could potentially slightly increase speed and lessen the time it takes for the battery to discharge, no maintenance like waterfilling or terminal cleaning, a much faster charging time, and a longer lifespan. More information and specifications are listed below.
![]() |
![]() |
![]() |
Order here at Prime Cart Parts.
For any other inquiries, call or use our contact form to get in touch with us.
Spiderway Golf Cart Lithium Battery Features
Compatible Models: i20, i20L, i40, i40L, i60, i60L, PURE EV P20, PURE EV P40, PURE EV P40L, PURE EV P60, PURE EV P60L, EPIC E60L, EPIC E60, EPIC E40L, EPIC E40, EPIC E40FL, EPIC E40F, EPIC E20, EPIC E40FX, and more

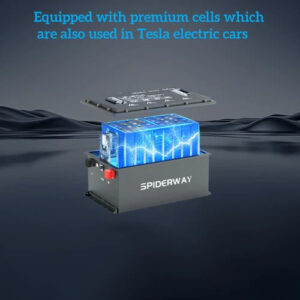

Top-Flight Performance: 48V 105Ah golf cart LiFePO4 battery is manufactured by top-of-the-line Grade A Prismatic LiFePO4 Cells and has a compact 5.37kWh energy, which is equivalent to 4pcs 12V 100Ah LiFePO4 in 4S (even 8pcs 12V 100Ah AGM batteries in 8S). It has a great 10.24kW power with low self-discharge rate, low capacity loss, more stable performance, and continuous discharge current up to 200A, which is 50% more powerful than the other same-size lithium battery.
Get Rid of Lead-Acid Now: Spiderway 48V 105Ah lithium golf cart battery unleashes an impressive surge of power, delivering exceptional acceleration and performance. Conquer even the toughest terrains with ease and take your golf game to new heights. Say goodbye to range anxiety! Allowing you to enjoy continuous golfing for up to 50 miles on a single charge.

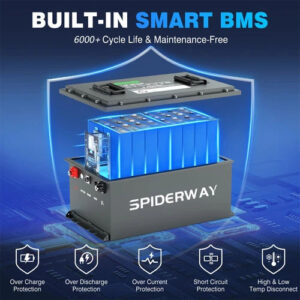

Built-in 200A BMS & Multiple Protection: The LiFePO4 battery built-in 200A BMS provides over-charge/discharge, over-current, high/low temperatures, and short-circuiting protection. The battery case is made of high-strength cold-rolled sheet metal is fireproof, shockproof and IP67 waterproof. With good thermal and chemical stability. Maintenance free, no daily maintenance work and cost.

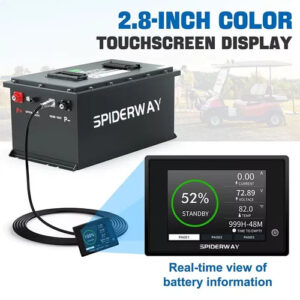

Born for Golf Carts & LCD Touchscreen: The lithium battery is specially designed and engineered to meet the rigorous demands of the 48V golf cart industry, with more powerful energy and excellent performance, compatible with the main brand golf cart controllers in the market. And comes with a 58.4V 25A LiFePO4 charger, which supports fast charging, 0% to 100% in just 4 hours. Equipped with a 2.8-inch touch screen you can view and control the battery in real time on the LCD screen.
Exceptional Longevity & Easy Installation: Our lithium golf cart batteries provide 6000+ cycles compared to 300~500 cycles in the lead acid battery. Helping to minimize replacement costs and reduce the total cost of ownership. And the weight of the 48V 105Ah battery is 50% lighter than the lead-acid golf cart battery of the same capacity and no complicated wiring requirements, making them easier to handle and install in golf carts where space is limited.

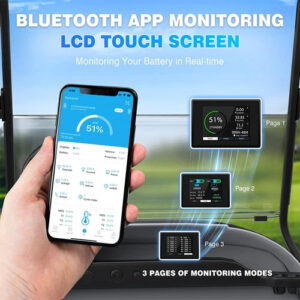

Mobile APP Monitoring: Spiderway golf cart battery has added an APP function. Customers can connect the battery through Mobile APP, read or control the battery various data (SOC) in real-time.
Specifications:
- Color: Black
- Battery Type: LiFePO4 Battery
- Chemical Composition: Lithium
- Amp Hours: 105 Ah
- Norminal Capacity: 105 Ah
- Voltage: 51.2V
- Battery Size: 18.9 x 12.7 x 9.5 in
- Power: 5.376 kWh
- IP Grade: IP 67
- Cycle Life: 6000+
- Cell Quantity: 16
- BMS: 200A
- Battery Weight: 106 lbs
- Warranty: 10 Years
Package Included
- 1 x Lithium Battery
- 1 x Charger
- 1 x LCD Screen























One of the most important tasks is making sure that an electric golf cart’s batteries are in their best condition and will last as long as possible. Many newer carts have a lithium battery system, which require virtually no maintenance, but for carts with a lead-acid battery system, regular maintenance is necessary. This includes checking the water levels and refilling with distilled water when they’re low – when refilling, the water levels are meant to be about an inch below the cap hole, or just touching the edges of where the hole begins. Cleaning the terminals is also essential to preventing damage to the posts or cables. Using a solution of baking soda and water, use a wire brush to clean any corrosion and the liquid solution to dissolve the acid deposits.
It’s recommended to use a tire pressure gauge to check the air pressure level of your tires and make sure none are over or underinflated. Depending on your golf cart, the specific ideal tire pressure may vary, but most cart tires range between 15 and 25 psi. Also make sure to inspect for any signs of excessive wear or damage, such as shallow grooves, exposed treads, or reduced firmness.





















































When going over your electric vehicle’s components, we provide a variety of basic maintenance tasks necessary to proper function. This includes fluid checks and replacements, such as changing hydraulic brake fluid, checking the transmission fluid in the drive unit, and refilling windshield wiper fluid if needed. We can also change wiper blades, as well as cabin filters, and even very simple tasks like changing key fob batteries.
When driving, the alignment of your wheels slowly shifts and becomes uneven over time. Other minor accidents, such as fender benders and hitting potholes or curbs, along with off-roading or aggressive driving, can worsen misaligned wheels. A sign that your wheels are misaligned is, when letting go of the steering wheel, the vehicle pulls instantly to the left or right. Over time, this worsens, and with all the effort required to keep the car straight, your tires will become worn faster than normal, and more unevenly, and more energy is used. Our team of technicians is ready to get your electric vehicle’s wheels straightened out for a smoother and more energy efficient ride.
Worn suspension can cause a variety of issues, including causing wheels to become misaligned much faster than normal, a rougher driving experience – which could lead to increased wear and more frequent maintenance -, and decreased durability and lifespan. If your suspension is not in good condition, it can create various different issues down the line for your vehicle. Our maintenance team will inspect and diagnose any issues, and give you the best price quote for any repairs needed.
